So Much More Than Just a Power Strip!

The Energy Bars available for our Apex systems are much more than a glorified power strip. In fact, this component of your aquarium controller equipment is far more important than most people realize – and not all systems are created equal!

It is obvious that this component is key to controlling things on your aquarium, but what is not so apparent is how it is critical to preventing catastrophe in your aquarium

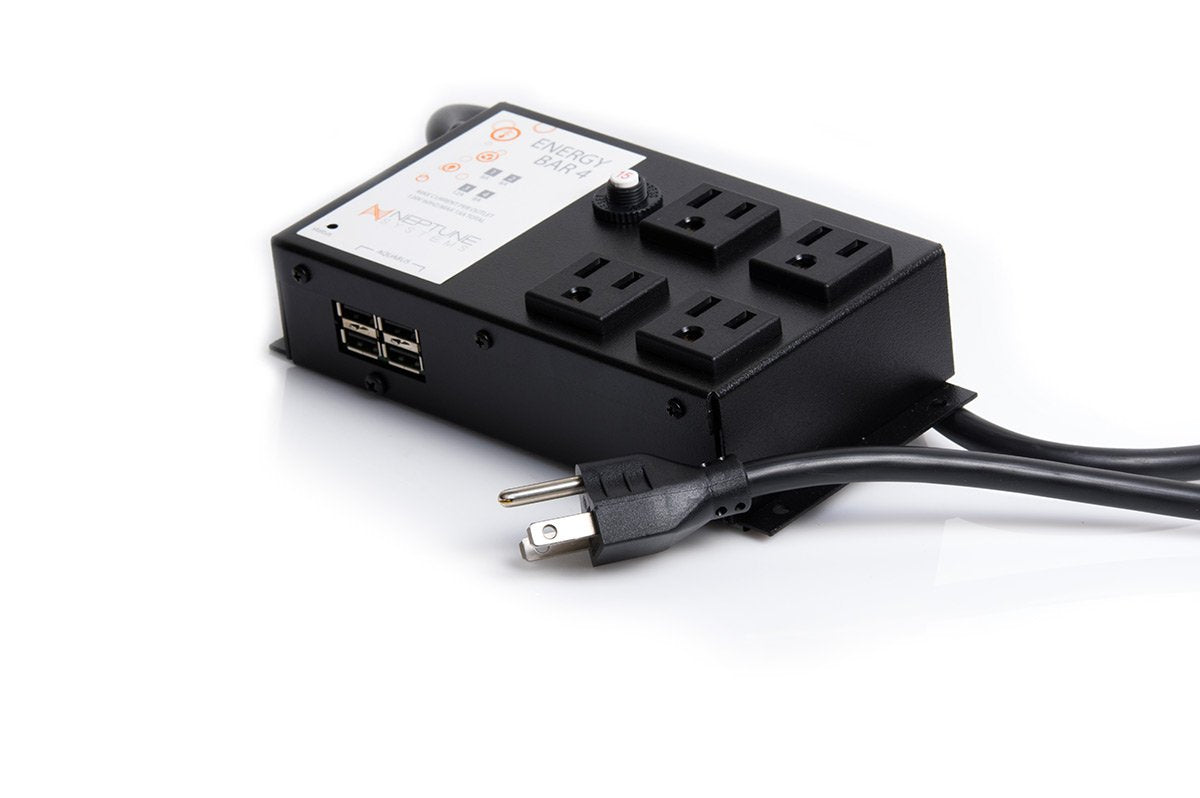

Energy Bar 4

• Designed for a USA-style 120V power grid.
• Four controllable outlets. All outlets are controlled by high-current mechanical relays. Three of the outlets are rated at 8A and one outlet is rated at 12A.
• Each Energy Bar can consume a total of 15A  and has a built-in 15A circuit breaker.
• Four AquaBus connectors so you will have three free to connect to more modules or Energy Bars

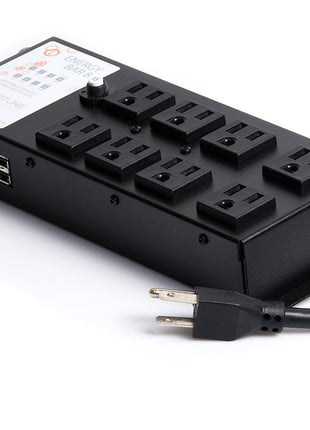

Energy Bar 8

• Designed for a USA-style 120V power grid.
• Eight controllable outlets. Six of these outlets are controlled by super-silent solid-state triacs and are rated at 5A. Two of the outlets are controlled by high-current mechanical relays and are rated at 10A.
• Each Energy Bar can consume a total of 15A  and has a built-in 15A circuit breaker.
• Six AquaBus connectors so you will have five free to connect to more modules or Energy Bars

The Energy Bar 832 has been completely redesigned, with more robust outlets, individual LEDs show the status of each outlet, per outlet power consumption, and 1Link Accessories like the DOS and WAV pump can now connect directly to the Energy Bar 832 saving room, and eliminating messy cords keeping your tanks equipment looking perfect.

• 8 Relayed Outlets
• Up to 3 WAV pumps
• 2x 24VDC accessories
• Powers other 1Link Accessories
• Individual outlet power consumption



Dimension - Energy Bar 832 - 10" L x 6.5" H x 2.25" W



Not compatible with Classic Apex Controller Systems.



Energy Bar 832

The completely redesigned Energy Bar 832 now has eight individual, 7 amp relayed outlets letting you use any outlet for any device. Each individual outlet can also monitor and detect power usage in amps or watts, letting you set alarms and send emails when pumps have clogged or failed, lights are not turning on, heaters leaking current, letting you be notified of the issue before it becomes a problem. With electricity costing more and more money per Kilowatt hour having the ability to monitor each pump, heater, and light lets you now make better decisions on the overall value of your equipment.



Each Energy Bar 832 is equipped with two 24VDC accessory ports that can power small pumps, solenoids, fans and more, while the built in 100W DC power supply lets you control up to 3 1Link accessories like the WAV circulation pumps, and DOS fluid metering system without the need of any additional power supplies or consuming additional outlets. The EB832 also has 3 AquaHub connections letting you expand to any existing or upcoming module making your Apex System truly limitless.



Neptune didn't stop there, with an all new mounting system on the Energy Bar orients the power strip in the correct direction keeping cords neat and tidy. While the outlets have a bit wider spacing, and orientated opposite of each other keeping room for those bulky transformers, allowing you to plug in almost anything you want, where you want.



Whats Included?

1x Energy Bar 832

1x 3ft Aquabus Cable



Note: The Energy Bar 832 is not compatible with Classic Apex Controller Systems.
